Netpas Vessel Monitor Quick Help

14. Edit your own route.

Move or change or remove waypoint of your route.
With "Edit route" function, you can control waypoints by adding, dragging to move and removing them.

14.1. The function of Edit Route

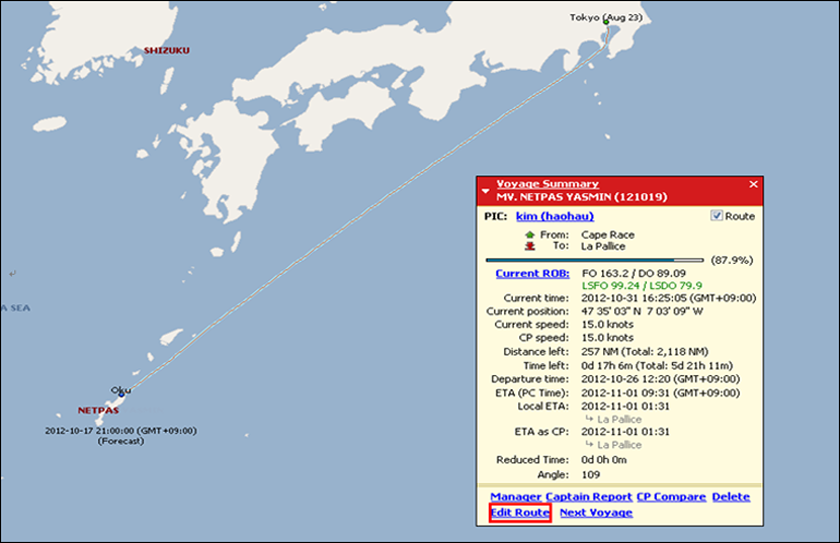

14.1.1. Click "Edit Route" in the Voyage Summary.

nvmQuick Help Image

14.1.2. Then you can see the waypoints in purple on your route. From here, you can move, add and delete waypoints.

nvmQuick Help Image

14.2. How to add a waypoint

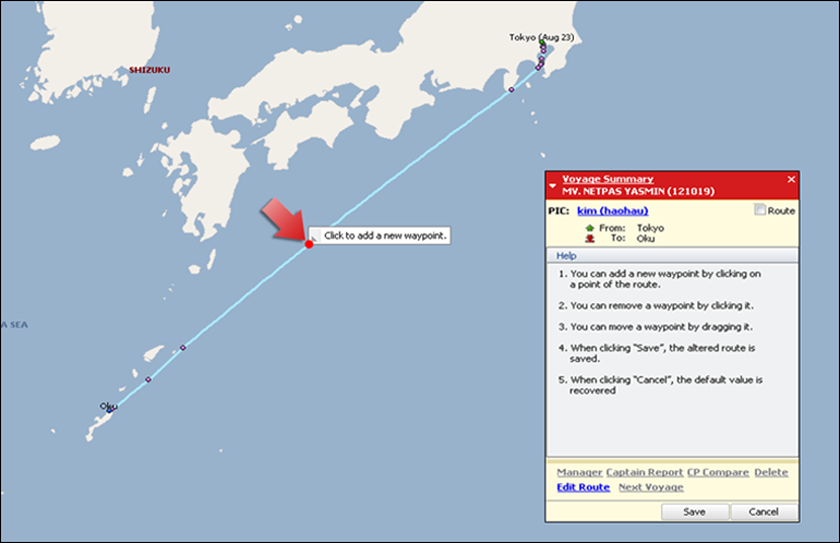

14.2.1. When your mouse put on any point within your route line, you'll see the message tip "Click add a new waypoint" like below.

nvmQuick Help Image

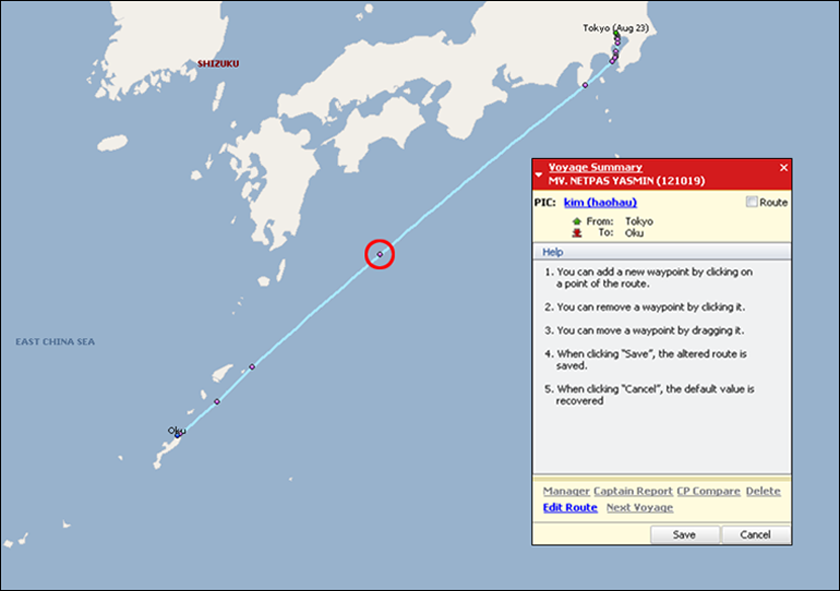

14.2.2. If you click there, a waypoint will be added on your route. Don't forget to click "Save".

nvmQuick Help Image

14.3. How to move a waypoint

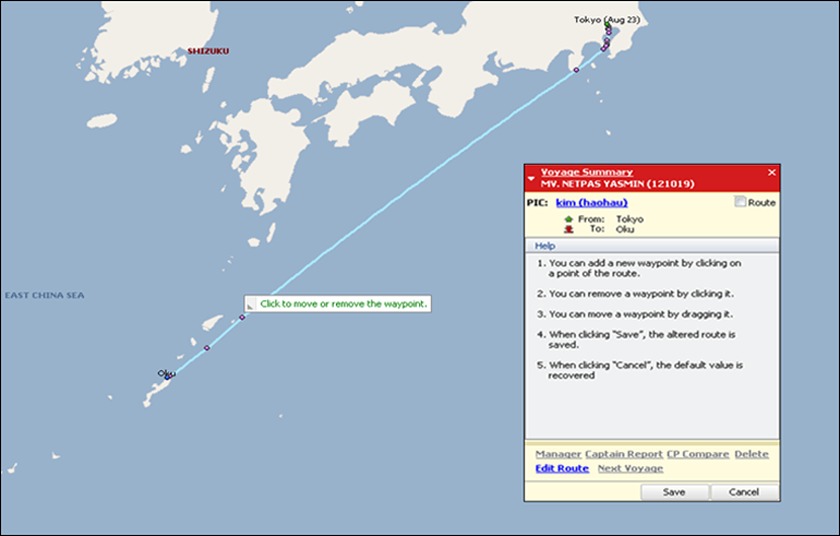

14.3.1. If your mouse put on any waypoint on your route, you can see the message "Click to move or remove the waypoint"

nvmQuick Help Image

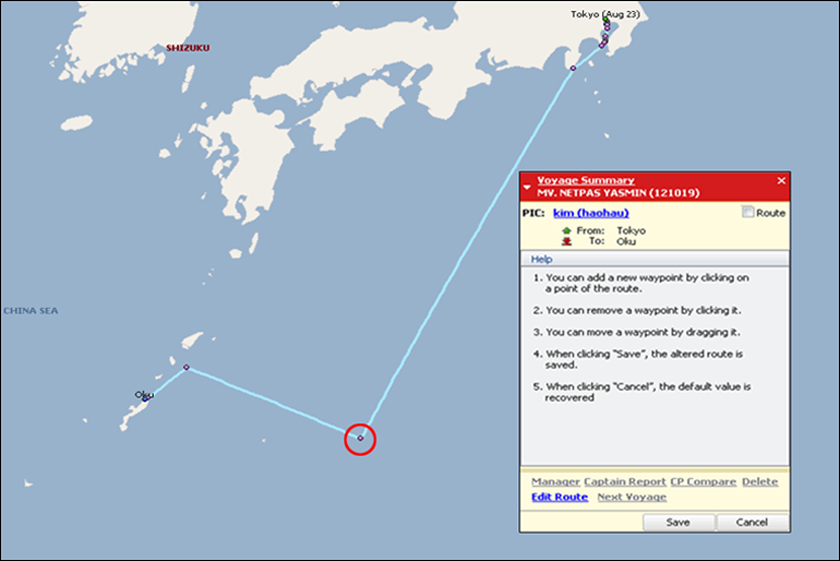

14.3.2. There holding to click your mouse, drag and drop the point where you wish to change. You can move a waypoint like this.

nvmQuick Help Image

14.4. How to delete a waypoint
14.4.1. If your mouse put on any waypoint on your route, you can see the message "Click to move or remove the waypoint"

nvmQuick Help Image

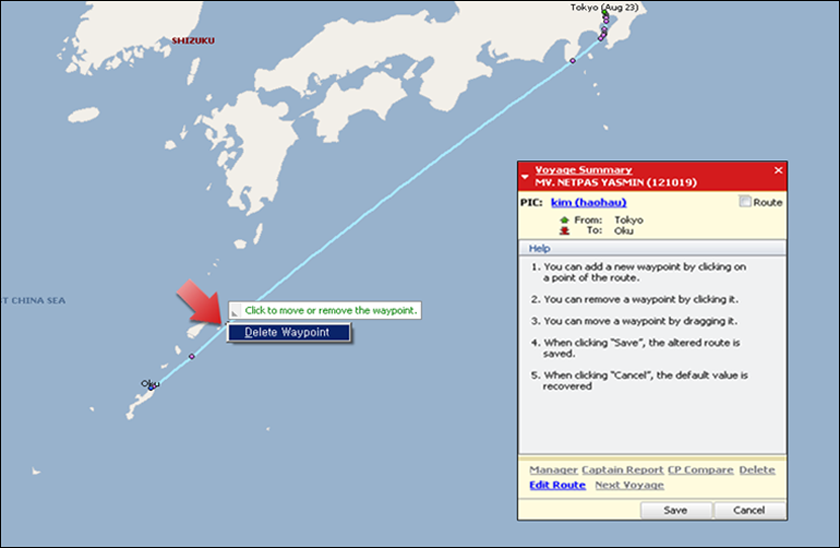

14.4.2. When you click the waypoint, you'll see the message tip "Delete waypoint". Then if you click "Delete waypoint", the waypoint will be deleted.

nvmQuick Help Image

** Caution: Regarding of the already passed route, "Edit Route" is not available. If you'd like to change the passed route, please kindly click "Pre Step" first then click "Edit Route". More information about "Pre Step", please go to #13 in this NVM Manual.
